Manual J 8th Ed

To have a Manual J performed for your project,
see our order page.

Trying to figure out how many BTU’s of cooling or heating a home with rules of thumb or guesstimation leads to mistakes, comfort issues and well, breaking the law ! NYS code requires that heating and cooling systems be sized according to the air conditioning contractors association approved methods, which is the ACCA Manual J 8th ed.

After providing hundreds of load calculations for my customers I still can’t look at a house or set of plans and guesstimate accurately the two most important bits of information needed, Total heating or cooling loads and what each room will need.  I have also learned from teaching hundreds of HVAC contractors how to use Elite Soft RHVAC MJ8 software that there there probably isn’t anyone in the country who can.

While that last statement could be misunderstood as an insult to HVAC professionals, Its not. Determining a homes load is not intuitive and there simply are too many variables to take into account.

One of the most important pages in the Manual J is called the Load Preview report.

Mj8 Load Prewview Report

The load preview report  will show each room and what that room requires to heat and cool properly. If the house has baseboard heat, the manual J should also show how many feet of baseboard is needed in each room. If the load calculation was done correctly, each room should heat and cool evenly, no cold rooms, no hot rooms.

I have also learned that there are two reasons why a professional wouldn’t provide a MJ8.

  1. The contractor has been doing it the same way for 20 years.
    They were taught by someone 20 years ago how to do it (Chances are they may have been more accurate back then). Homes have changed so drastically in the last 5 years, never mind 10 or 20 years.
  2. The contractor doesn’t believe the results are accurate.
    They look back at all the homes they have installed HVAC equipment in. They  remember a few jobs that had problems and that their conclusion was that the home needed larger equipment.

What could the real problems have been ?

Many contractors feel uncomfortable with trusting the results of a Manual J. They shouldn’t. The second part of accurate load calculations is the having the proper air flow to each room. Everyone has always pointed towards the actual equipment but rarely have people suspected improper duct sizing. The only time a duct is questioned is when the complaint is in one or two rooms, where there is an extreme problem. Meanwhile the rest of the ducts are not questioned.

Id be willing to bet that 99% of the complaints were actually due to the delivery of the heating / cooling medium. Its doesn’t matter if its hot water / baseboard or forced hot air / cooling and ducts.  In my experience most of the comfort issues, if not all, have been due to incorrectly setting up the delivery system.

Ultimately what do we wind up with ? Cooling equipment that’s greatly oversized, cooling equipment cools the air in the home so quickly that it fails to remove the moisture. Proper dehumidification is more important than actual temperature in determining comfort. Removing moisture is difficult, To remove moisture properly the cooling system needs to run for longer periods of time.

In the literally hundreds of Manual J’s and HERS ratings I have done for my customers or homes I have built, I have never once had a comfort based complaint.

Except for most energy Star labeled homes, Its been my experience that almost all homes built in NYS have had heating and cooling equipment installed that was one and a half to three times the size required. Over sizing AC equipment is bad for many reasons, besides lack of moisture removal, Compressors on start up draw the most amount of amperage. The larger the compressor, the more power it requires. The best analogy would be like buying a new vehicle. Why buy a dump truck when a small compact is all you need ?
Which is more efficient in the stop and go traffic ? The compact car. Where does the compact really shine ? On the open road, just cruising along.

Buying a compact car, and stuffing a giant tractor engine in it is plain dumb.

Even more amazing, If you size the equipment properly, its full output will be used for less than 1% of the time. The other 99% of the time it is STILL oversized. Design conditions are taken over a 30 year period. For heating, the outdoor design temperature is 99% of the coldest temperatures. So, in 30 years it will only be colder 1% of the time. For cooling, its based on 99% of the warmest temperatures. Again, in 30 years its only warmer 1% of the time.  So even sizing it the RIGHT way means the system will only reach full ouput for very few hours a year.

Lastly, As all homes are not perfect, Manual J is not perfect. Manual J has to account for homes that have unknown variables and allocate additional BTU’S for these variables. In other words Manual J already has a built in “fudge factor” that adds to the loads. From what I have found, as much as 15% for the ordinary average home.

Luckily for me, my preferred MJ8 software is not “Dumbed Down” and my loads are much, much closer to whats actually needed.

All is not lost, as no one who designs anything of value, designs only to its expected capacity. Manual J is by far the best option, if not the only option…

To view a sample MJ8 see Bob the Builders report.

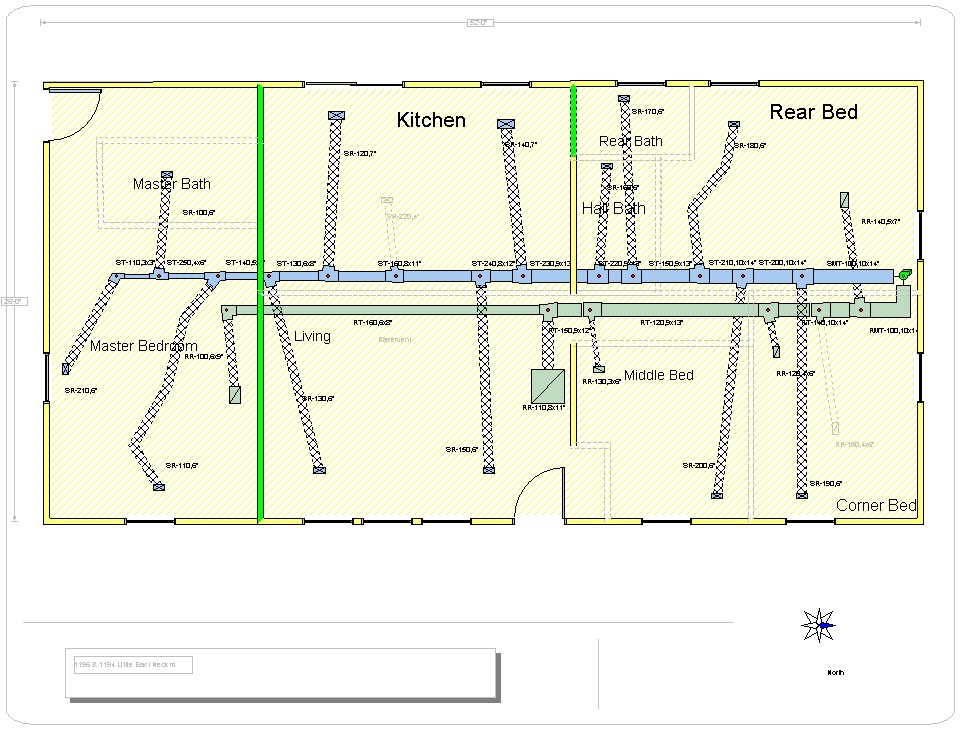

A sample Manual D or Duct design done in Drawing board…
